Generalization Relationships in UML Class Diagrams

Generalization relationships in UML Class Diagrams are crucial for depicting inheritance hierarchies, illustrating the "is a kind of" (or "is-a") relationship between classes. This relationship is central to object-oriented programming, as it defines the concept of one class being a specialized version of another.

Representing Generalization

Generalization is typically shown using an arrow with a hollow head pointing towards the superclass. This visually represents that the subclass inherits properties and behaviors from the superclass.

Example: Inheritance in Student Classes

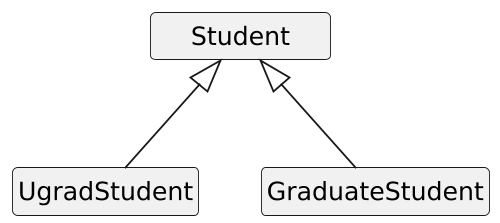

Consider the following UML representation of classes UndergradStudent and GraduateStudent, both inheriting from the Student class:

In this diagram, the arrows point from UndergradStudent and GraduateStudent to Student, indicating that both are special types of Student.

Implementing Interfaces

When a class implements an interface, the relationship is depicted with a dashed line and a hollow arrowhead pointing to the interface. This signifies that the class conforms to the behavior defined by the interface.

Example: Shape Interface

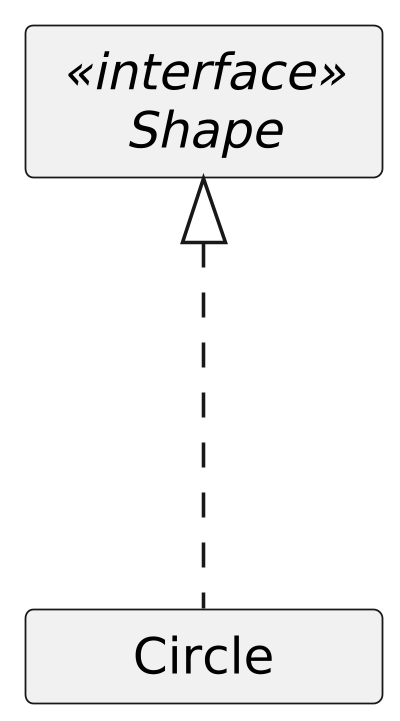

For instance, if a class Circle implements an interface Shape, it can be represented as:

Notation for Abstract Classes and Interfaces

Abstract classes and interfaces can be further annotated for clarity. The use of <<abstract>> and <<interface>> above or below their names helps distinguish these from concrete classes in the diagram.
