Understanding Relationships in UML Class Diagrams
Relationships in UML Class Diagrams are critical for illustrating how classes interact within a system. There are three primary types of relationships: dependencies, associations, and generalizations. Each type is represented uniquely in UML diagrams, so it's important to recognize these differences.
Types of Relationships
- Dependencies: Indicate a situation where one class uses or relies on the functionalities of another class.
- Associations: Represent the structural relationship between classes, typically showing how instances of one class are connected to instances of another.
- Generalizations: Describe an inheritance relationship where one class is a specialized version of another.
The relationships are depicted using lines (connectors), and their nature is indicated by the style of the line and the symbols used at the ends (e.g., dashed vs. solid lines, arrows, diamonds, etc.).
Depicting Dependency Relationships
In UML, a dependency is represented as a dashed line with an arrowhead pointing towards the class being depended upon.
Example: Schedule and Course Dependency

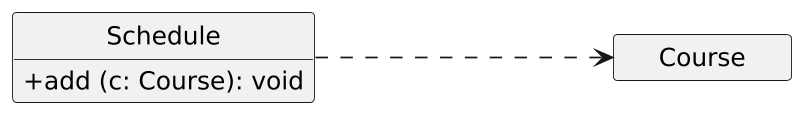

Consider two classes: Schedule and Course. The Schedule class uses the Course class in its operations, thus creating a dependency.
In this example, the dashed arrow from Schedule to Course illustrates that Schedule has a dependency on Course. This dependency arises because Course is used as a parameter in the add method of the Schedule class.
Dependencies can also represent semantic relationships beyond just usage, indicating a broader sense of reliance or influence between classes.
