UML Class Diagrams:

A UML Class Diagram provides a graphical representation of the classes within a software system, outlining their structure and relationships. This section will guide you through the essential components of a class in a UML Class Diagram.

Basic Structure of a Class

In a UML Class Diagram, each class is depicted as a rectangular box divided into compartments. The primary elements of this representation include the class name, attributes (data fields), and operations (methods).

Class Name

  • The class name is displayed at the top compartment of the box.
  • It is the only mandatory element in the class representation.

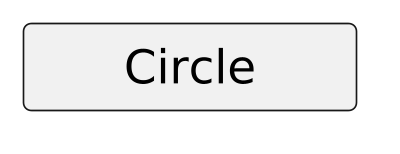

  • Example: A class named "Circle" would simply be represented as:

Attributes and Operations

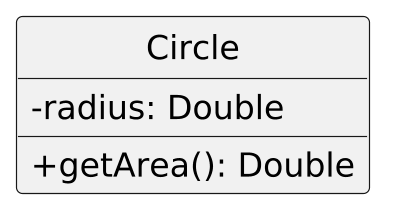

  • The second compartment lists the attributes, while the third compartment contains the operations.
  • Attributes are formatted as name: type and can include visibility indicators: + (public), `` (private), # (protected), and / (derived).
  • Operations are formatted as method(type): return_type and follow the same visibility notation.

Additional Notations

  • Static Elements: Static methods and fields are underlined.
  • Constants: Fields that are constants (final) are typically written in ALL_CAPS.
  • Abstract Methods: These are represented in italics, where the font allows.

Guidelines for Class Representation

While constructing a class diagram, consider the following:

  • It's not necessary to include every attribute and operation. For clarity, common methods like constructors, getters, and setters can be omitted.
  • Focus on elements that provide insight into the structure and behavior of the class in the context of the system.
  • Ensure that the diagram remains readable and not overcrowded with details that are not critical to understanding the system’s architecture.

In summary, UML Class Diagrams are a powerful tool for visualizing the structure of classes within a system. By adhering to these guidelines, you can create clear and informative diagrams that effectively communicate the key aspects of your software architecture.
